Product Range
Technical details

1

Long sweep bend 90°(G4)

1a

Short bend 90° (D4)

2

Long Sweep Bend 90° (G1)

2a

Short Bend 90° (D1)

3

Long sweep bend 90° (G8)

16

Socket (M2)

16 thick

Socket (M2)

16 special length

Socket (M2)

16 half length

Socket, half length (M2)

20

Plug (T8)

21

Backnut (P4)

22

Running nipple

23a

Welding nipple

23

Barrel nipple

40

Long sweep bend 45° (G4)

41

Bend 45° (G1) F/F

85

crossover

90

Elbow 90° (A1)

90r

Reducing elbow 90°(A1)

92

Elbow 90° (A4)

92r

Reducing elbow 90° (A4)

94

Elbow 90°

95

Union elbow flat seat (UA1)

96

Union elbow taperseat (UA11)

97

Union elbow flat seat (UA2)

98

Union elbow taperseat (UA12)

120

Elbow 45° (A1)

121

Elbow 45°

130

Tee (B1)

130r

Reducing tee (B1)

130rr

reducing tee, through reduced

131

Pitcher tee (E1)

133

Tee

134

Tee M/F on the run

134r

Reducing tee M/F on the brunch

135

reducing tee F/F

180

Cross (C1)

220

Y-piece

221

Side outlet elbow (Za1)

223

side outlet tee

240

Reducing socket (M2)

241-I

Reducing bush F/M (N4)

241-II

Reducing bush F/M (N4)

241-III

Reducing bush F/M (N4)

245

Reducing hexagon nipple (N8)

246

reducing socket M/F (M4)

270

Socket (M2)

271

Right and left socket (M2)

280

Hexagon nipple (N8)

290

Plug beaded (T9)

291

Plug plain

294

Plug with hole in square head

300

Hexagon cap (T1)

310

Backnut (P4)

321 B

flange with bolt holes

330

Union flat seat (U1)

331

Union flat seat M/F (U2)

335

Union flat seat M/F

336

Union flat seat F/F

340

Union taper seat (U11)

341

Union taper seat M/F

344

Union taper seat F/F

370

Union bush flat seat (US 1/2)

371

Male union end , flat seat (UL2)

372

Female union end flat seat (UL1)

374

Union Nut (P1)

375

Pump connection kit P1/UL1

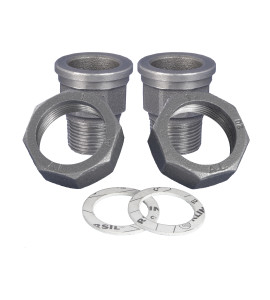

377

Pump connection kit P1/UL2

gaskets

gaskets

471

Bracket elbow

529a

Extension tube F/M (M4)

Type 13

Screwed flanges

Type 11

Welding neck flanges

Type 05

Blind flanges PN6 / PN16
